Low Temperature Ambience Sliding Friction Tester

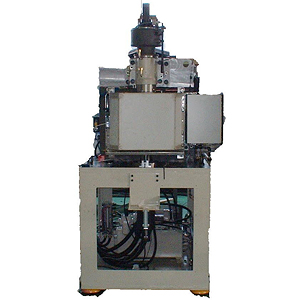

Low Temperature Ambience Sliding Friction Tester

Main specifications
Test piece Pin on disk
Ring on disk
Load Hydraulic servomotor type
200 ~ 5,000 N
Rotation speed High speed 20 to 12,000rpm
Low speed 0.05 to 50rpm
Test piece ambience
  • Dry -40ºC to Ordinary temp. Ordinary temp. to 300ºC Humidity 30 to 70%RH
  • Oil bath F Ordinary temp. to 200ºC
  • Oil circulation F Ordinary temp. to 150ºC
