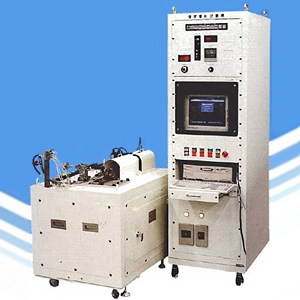

Reciprocating Slide Friction Tester (Shuttle-Bot)
  • The shuttle-bot tester is designed to perform a reciprocating friction & wear test using a ball (or pin) and a plate.

The purpose of the shuttle-bot tester is to evaluate the changes of frictional force during receiprocating slide and coeficient of friction.
The wide changing fuction of the load, slip rate and surface temperature supports the understanding in friction and wear property of metal or resin materials and lubricants.

Main specifications
Upper test piece (fixed) Ball: 3 to 10mm in dia. Pin: 3 to 10mm in dia.
Lower test piece (reciprocating) Plate: 30 x 10 x 1 to 10mm thick
Frequency of reciprocation Max 10Hz
Stroke 2mm / 10Hz ~ 10mm / 2Hz
Load 0.5 ~ 5N
Temperature conditions 1) Oil bath: Ordinary temperature to 150ºC (plate temperature)
2) Oil application: Ordinary temperature to 150ºC (plate temperature)
3) Dry: High temperature 600ºC Max.
