Low-voltage
Mobile Power Stations
Low-voltage
Specifications
| KMP-075L | KMP-100L | KMP-150L | ||
|---|---|---|---|---|
| Energy Generator | Capacity [kVA] | 75 | 100 | 150 |
| Voltage [V] | 210 | |||
| Frequency [Hz] | 50/60 | |||
| Power factor | 0.8 (Lag) | |||
| Motor | Type | Diesel engine | ||
| Fuel type | Light diesel fuel | |||
| Fuel consumption [liter/h] | 16.7/17.7 | 22/28 | 35 | |
| Continuous operation Time [h] *1 | 8.5 (250) | 5.3 (250) | 3.0 (120) | |
| Noise level [dB] | 75 | |||
| Vehicle | Total length [mm] | 5,620 | 6,145 | 6,290 |
| Total width [mm] | 2,020 | 2,175 | 2,180 | |
| Total height [mm] | 2,500 | 2,785 | 2,680 | |
| Total weight [kg] | Less than 8,000 | |||
| Vehicle type | Medium cab over truck | |||
*1: Upper: with a single tankful of fuel, /
lower: with continuous fuel supply
Product Example
-

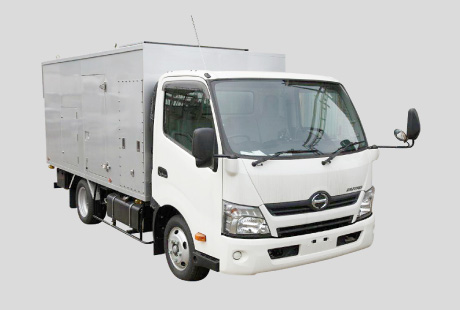

KMP-075L (75 kVA)
-
KMP-150L (150 kVA)
Operation Example: As a temporary power source in an emergency
KMP-150L can supply 30-60 temporary housing in case of emergency.
